Description

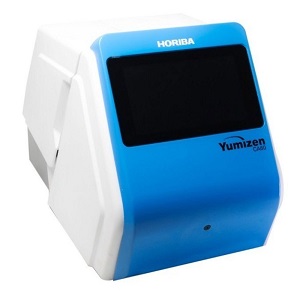

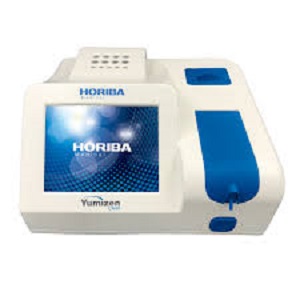

Yumizen CA40 is a semi-automated clinical chemistry analyzer with facility to perform Chemistry, Immunoturbidimetry and Coagulation Tests (PT & APTT). It is an ideal solution for small laboratories with the facility to perform a wide range of biochemical tests.
Features
Semi-automated clinical chemistry analyzer with coagulation tests capacity (PT & APTT)
8 incubation positions for chemistry tests and 5 positions for coagulation tests
8-inch colored touch screen display
Tri-level quality control with Levey-Jennings chart
6 filters with additional 2 open positions
Specifications
Interface
8” Touch Screen Colored Display with User Friendly Software
Sample types
Serum, Plasma, Urine, CSF, Whole Blood and Body fluids
Assay modes
Absorbance, End point, Fixed Time, Kinetic & Multi point
Calibration
Factor, Single Point, Multi Point (Upto 6 Calibration Point and Upto 3 replicates per point)
Calibration Curve
Spline, Point to Point, Linear Regression, Quadratic Regression, Polygonal
Flowcell Volume
18µL
Cuvette Options
Flowcell, Macro Cuvette & Coagulation Cuvettes with Holder
Aspiration Volume
200 – 1000 µL
Light Source
Halogen Lamp
Photometer
Photometer wavelength range from 340-700 nm with minimum 6 wavelengths
Measuring Range
-0.1000 – 3.0000 Abs
Storage
5,000 Patient Results
Quality Control
3 Level for each Parameters, Levey-Jennings Chart, Westgard Rules
Thermostat Range
25° – 37° C
Inbuilt Incubator
8 Position for Chemistry & 5 Positions for Coagulation tests
Printer
Inbuilt Thermal Printer
Ambient Temperature
10 – 35° C
Max. Relative Humidity
< 85 %
Connectivity
2 USB Port
Power Supply
30W, 15 Volt, 100V – 240 V
Certification
CE marked
