VITOM EAGLE

Description

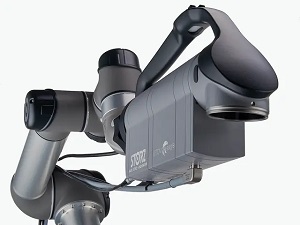

VITOM® eagle is a state-of-the-arm exoscopic system that offers several advantages. It provides a comfortable and ergonomic working position and promotes effective cooperation at the same time. It also improves teaching possibilities and cost efficiency.

High-resolution 4K-3D imaging function
Compatibility with the IMAGE1 S™ camera platform, allowing endoscopy and exoscopy to be combined via a single camera platform
Fluorescence imaging options for all applications (NIR/ICG, BLI/5-ALA, fluorescein)
Enhanced zoom functions with up to 45.5x magnification of even the smallest details
Control of various functions via IMAGE1 PILOT, footswitch and camera head buttons

Frame rate 50 / 60 Hz
Image sensor type CMOS
Scanning method Progressive scan
Lens Stereo
Zoom function Yes, 6x optical, 2x digital
Working distance 20 – 50 cm
Width 97 mm
Height 227 mm
Length 366 mm
Weight 4500 g
Camera head buttons 8 Buttons, 2 freely programmable
Sterile concept Single-use covers
Autoclavable No
Wipe disinfection Yes
S-Technologies No
Fluorescence imaging (NIR/ICG) Yes
Fluorescence imaging (Blue Light Imaging, BLI) Yes
Image sensor resolution 4K
Number of image sensors 4
Brand VITOM®
Fluorescence imaging (FL) Yes
Connection 4U-Link
Magnification range 91x (32″ monitor) or up to 156.4x (55″ monitor)
