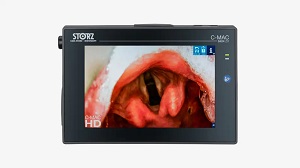

The C-MAC® HD Monitor – The Heart of the C-MAC® System

Description

Interactive FULL HD touch screen that can also be used with gloves
Picture-in-Picture and Side-by-Side modes
Integrated microphone allows audio comments to be added to the videos

System interface C-MAC®
Screen diagonal 8″
Resolution 1920 x 1200 px
Wide angle display 160°
Video output HDMI
Number of video inputs 2
USB port type 2.0
IP protection class IP54 (splash-water protected)
Rechargeable battery, battery type Chargeable Li-ion battery
Storage medium for documentation SD card, transferable to USB flash drive
Battery operating time max. 120 min
Power Management Capacity indicator of chargeable Li-ion battery
Playback option Captured images and video sequences
VESA mount 75 x 75 mm
Screen width 150 mm
Screen height 94 mm
Length 230 mm
Width 155 mm
Depth 57 mm
Weight 1250 g
Input voltage 12 V
