Description

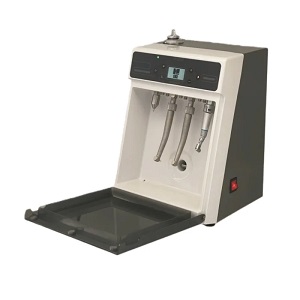

The HM-1 is an automated lubrication system designed specifically to maintain and extend the lifespan of dental instruments. It streamlines the sterilization workflow in dental clinics by simultaneously cleaning and lubricating up to three handpieces. The device features a negative pressure suction system to ensure a mess-free operation, keeping the workspace clean and safe.
Key Features
Multi-Device Capacity: Capable of lubricating and maintaining two high-speed hand pieces and one low-speed handpiece at the same time.
Spindle Maintenance: Specialized capability to lubricate and maintain the handpiece spindle (chuck) mechanism.
Precision Economy: Accurately controls oil output to reduce waste and significantly save on lubrication costs.
Residue Removal: Features a dedicated “Air button” function to blow out excess oil residue, preventing oil bagging.
Clean Environment: Built with a negative pressure suction system and an integrated oil absorbent pad to ensure the machine and surrounding area remain tidy.
Technical Specifications
Parameter Specification
Model HM-1
Power Input AC100–240V, 50/60Hz
Rated Power 60W
Working Pressure 0.3 – 0.4 MPa
Oil Tank Capacity 200 mL
Dimensions 250 x 300 x 390 mm
Net Weight 8.5 kg
Protection Grade IP20
