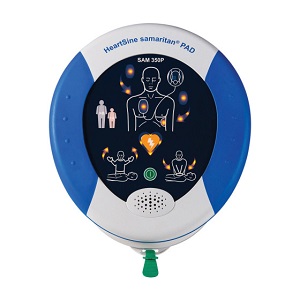

HeartSine Samaritan PAD 350P Semi Automatic AED

Description

The HeartSine samaritan PAD is an automated external defibrillator (AED) that analyzes the heart rhythm and delivers an electrical shock to victims of Sudden Cardiac Arrest in order to restore the heart to normal rhythm. This user-friendly AED provides easy to follow visual and audio prompts to guide the rescuer from pad application to shock delivery, if required.

COMPACT IN SIZE. BIG ON ABILITY
Portable and lightweight. At only 2.4 lbs (1.1 kg), weighs less and is up to 56% smaller than other portable defibrillators.
Highest level of dust/moisture protection. The samaritan PAD has a rating of IP56, providing the 350P defibrillator with the highest level of protection from dust or moisture ingress in the industry.
Durable. The samaritan PAD 350P resists shock and vibration and carries an IP56 Rating, the industry’s highest rating against dust and moisture ingress. It also carries a ten-year unit warranty that demonstrates the reliability of this quality unit.
Advanced technology. The samaritan PAD 350P utilizes proprietary electrode technology, advanced and stable firmware, and proprietary SCOPE™* Biphasic Technology (an escalating and low-energy waveform that automatically adjusts for patient impedance differences) to assess rhythm and maximize effective shock delivery if necessary.

EASY-TO-FOLLOW VISUAL AND VOICE PROMPTS
User-friendly. The samaritan PAD 350P features easy-to understand visual and voice prompts that guide a user through the process, including CPR coaching. Three large, easy-to-see icons facilitate the rescue process: “Attach pads,” “Do not touch the patient,” and “It is safe to touch the patient”.
Two-button operation. Only two buttons, ON/OFF and SHOCK, are required for straightforward operation.
Always ready. A System Status Ready Indicator flashes to show that the complete system is operational and ready for use. Device automatically runs self check each week.

REAL ECONOMY FOR THE REAL WORLD
Two parts, one expiration date. Pad-Pak cartridge combines battery and electrode pads, with just one expiration date to monitor.
Low cost of ownership. With a shelf life of four years from date of manufacture, the Pad-Pak offers significant savings over other defibrillators that require separate battery and pad units.
Protects both adults and children. The HeartSine PAD’s built-in intelligence and unique Pediatric Pad-Pak, which is available for 1-8 years of age (|Field upgradeable. Easily upgrade in the field to the latest AHA/ERC guidelines.

SPECIFICATIONS
Energy Selection:
Adult: Shock 1: 150J; Shock 2: 150J; Shock 3: 200J
Pediatric: Shock 1: 50J; Shock 2: 50J; Shock 3: 50J

Charging Time:
New Battery: Typically 150J in < 8 seconds, 200J in < 12 seconds
After Six Discharges: Typically 150J in < 8 seconds, 200J in < 12 seconds

Event Documentation:
Type: Internal Memory
Memory Capacity: 90 minutes of ECG (full disclosure) and event/incident recording
Playback Capabilities: Custom USB cable directly connected to PC and Saver™ EVO Windows-based data review software
Pad-Pak — Electrode and Battery Cartridge:

Shelf Life: Four years from manufacture date
Weight: 0.44 lbs (0.2 kg)
Size: 3.93 in x 5.24 in x .94 in (10 cm x 13.3 cm x 2.4 cm)
Battery Type: Lithium Manganese Dioxide (LiMnO2)
Capacity: > 60 shocks at 200J
18V, 1.5 Amp Hrs
Electrodes: HeartSine samaritan disposable defibrillation pads are supplied as standard with each device
Placement: Anterior-lateral (Adult); Anterior-posterior (Pediatric)
Active Gel Area: 15.5 in2 (100 cm2)
Cable Length: 3.3 feet (1 meter)

Contents
1 x HeartSine Samaritan PAD 350P Semi Automatic AED
