Description
Product Profile
Founded more than a decade ago, IKEDA Medical specializes in medical endoscopic unit. IKEDA endoscopes have continually innovated and broken through from SD to HD, 3D to 4K. As cameras develop, the number of choices increases. Continuous technological advancements allow procedures to be carried out in a safer manner. Camera provides clear images and true colors, capable of photographing moving objects without distortion, achieve both high-speed signal processing and low noise, Capture high-definition wide-area images. The procedure is even more effective when combined with IKEDA medical displays and cold light sources.
~IPX8 Waterproof Camera Head, Global Shutter Image Sensor
~One Tap Switch for 11 Surgical Scenes
~High definition resolution 1920*1080 pixels
~on-device HD video recording and image capturing (optional)
~USB Flash drive (optional)
~ENT, Laparoscopy, Urology, Gynecology

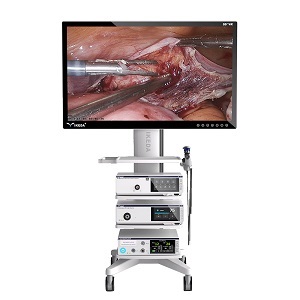

YKD-9115-T FULL HD Endoscope Camera System
FULL HD Image Sensor
Can be matched with stroboscopic light source for stroboscopic laryngoscopy
FHD camera head and LED cold light source integrated
Built-in USB FULL HD image storage, Integrated photo/video recording system
Universal C-mount threading
Endoscopic Camera Head
FHD IPX-8 waterproof grade
User-Definable : Photo Capture/Video Recording/
Zoom in/Zoom Out/White Balance
Capture high-definition wide-area images
Achieve both high-speed signal processing and low noise
Capable of photographing moving objects without distortion
Product Detail
Camera head
Full HD imaging(1920×1080)
IPX8 waterproof, Full HD optical Coupler C-mount standard.
Voltage range (current consumption)
·100-240 V(50 VA)
Frequency
50-60Hz
Device protection
2xT3,15 A
Video system
Image resolution: FHD 1920× 1080 Horizontal resolution: 1200TVL
SNR:60DB,Tolerance20%
Scanning system:Progressive Scanning ·White balance automatically
Screen Size
15″
Light Source
In-Built 100W
Recording (Options)
Image format:JPG 1920×1080, Mpeg-4 (H.264 Codec): Image rate 60fps Connection:USB
Connections
Video Out Terminal, 1 DVI. 1HDM, 1*CVBS
Protection Class
·I
Safety Class
BF
Standard
IBC 60601-1-2
Features
Auto White Balance/Freeze Function/Zoom/Touch Button Screen/USB Storage/Photo Capture/Video Recording/TELE
Language
Chinese/English/Japanese/Spanish/Korean/Russian
