Description

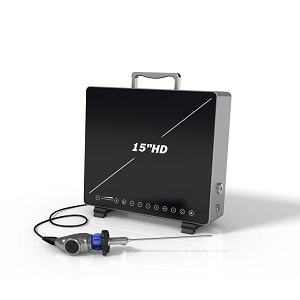

YKD-9115 Endoscope Camera System
FULL HD Image Sensor
Built-in USB Video recording function
Built-in LED cold light source
The integrated design of LED cold light source and camer
FHD Camera
FHD IPX-8 waterproof grade
User-Definable : Photo Capture/Video Recording/
Zoom in/Zoom Out/White Balance
Sony CMOS
Better Dynamic Range: with almost +17dB difference due to pixel well depth.
Higher Quantum Efficiency (QE) and Lower Dark Noise: contributes to better image fidelity.
Higher Frame Rate: CMOS sensors have better shutter speeds resulting in less image blur.
Affordability: despite their high perfor-mance, CMOS sensors don’t break the bank. This allows IKEDA to deliver stellar image clarity without inflating costs.
Product Detail
Camera head
· Full HD imaging (1920 x 1080)
· 1/2.8″ SONY CMOS
· IPX8 waterproof
· Full HD optical coupler C-mount standard
Voltage range (current consumption)
·100-240 V(50 VA)
Frequency
· 50-60 Hz
Device protection
· 2x T3,15 A
Video system
· Image resolution: FHD 1920 x 1080
· Horizontal resolution: ≥1200 TVL
· SNR: 60DB,Tolerance 20%
· Scanning system: Progressive Scanning
· White balance automatically
Screen size · 15 inch
Light source · Built-in 80W LED cold light source
Recording (Options)
· Image format: JPG 1920 x 1080
· Video format: Full HD 1920 x 1080;
Mpeg-4 (H.264 Codec); Image rate 60fps
· Connection: USB
Connections
Video out terminal:
· 1x DVI
· 1x HDMI
· 1x CVBS
Protection class (acc.to IEC 60601-1)
·I
Safety Class
BF
Standard
IEC 60601-1-2
Features
· White balance
· Freeze function
· Zoom in/Zoom out
· Touch Buttons
· USB storage
· Photo capture/Video recording
Language
· Chinese/English/Japanese/Korean/Spanish/German/Russian
