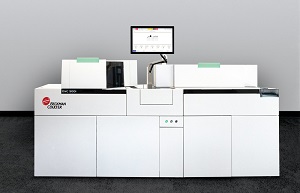

DxI 9000 Access Immunoassay Analyzer

Description

The award-winning DxI 9000 Analyzer sets a new standard with first-of-its-kind high sensitivity immunoassay testing capabilities for the core labs. Featuring meaningful innovations that amplify your impact, liberate you from the laborious, and power your performance across your health system, this high-throughput immunoassay analyzer takes diagnostics to the next level.

Expect the High Sensitivity and Precision Your Lab Needs
Six Sigma quality performance for Immunoassay enabling the laboratory to deliver high-quality results with greater sensitivity, even at lower sample volumes and in high throughput settings.

Don’t choose between speed and sensitivity.

Improved Sensitivity
Chemiluminescent Lumi-Phos PRO3 substrate delivers full glow in <1 minute, improved signal to noise ratio, and minimizes interference from endogenous ALP.

Improved Detection
Patented luminometer exhibits an expanded linear range to optimize signal detection at both low and high levels of light using multiple measurement methods.

Enhanced Precision
Dedicated sample pipettor and new disposable tips delivers sample to all 4 build stations reducing the potential of carryover; capable of delivering down to 2 μL of sample with ≤ 2% CV

Create time to focus on what matters most.
The DxI 9000 Access Immunoassay Analyzer sets a new standard for today’s busy labs. With meaningful innovations that amplify your impact, liberate you from the laborious, and power your performance across your health system, we’re taking diagnostics to the next level.

Review these instrument specifications to set up your lab for success.

Main Specifications
Analytical method
Chemiluminescent detector: luminometer
Barcoded reagents
Automatic tracking of:
Number of tests
Available tests
Expiration date
Lot number
Calibration expiration and printouts
Calibration
Calibration curve stability up to 64 days (assay dependent)
Calibration curves and parameters displayed on screen
Communication modes
Unidirectional, bi-directional, bi-directional with true host query
Both RS-232 and LAN connections are supported
Compartment temperatures
Incubator and wash/read wheel: 98.6°F (37°C)
Sample wheel: 40.1°F to 57.2°F (4.5°C to 14°C)
Reagent compartment: 39.2°F to 50°F (4°C to 10°C)
Immunoassay menu capacity
>50 preprogrammed, barcoded immunoassay methods currently available
Measurement principles
Acridan based chemiluminescent Lumi-Phos PRO
Sample container sizes
Ability to accommodate any tube between 12–16mm in diameter and 75–100mm in height
Sample cups:
0.5 mL
2.0 mL
3.0 mL
2.0 mL insert cups
Pediatric insert
Auto aliquot tube
Sample management/capacity
140 sample tubes (20 racks of 7 tubes), unique continuous loading feature
Primary tube released after aliquot is made (approx. 1 minute) 300 aliquots (≤200 μL) per hour
Capable of automation connection
Barcode symbology:
Ability to read 1-D and 2-D symbologies with camera technology.
Sample volume:
2-100 μL (assay dependent)
500 μL in aliquot vessel, maximum (including any potential reflex tests)
Sample and reagent pipettor obstruction detection
Sample types (assay dependent, partial list)
Serum
Plasma
Urine
Amniotic fluid
Whole blood
Reagent storage capacity
50 reagent packs:
System menu can be configured to match laboratory testing patterns (ability to load one pack of 50 different assays or 50 packs of one assay)
Automatic disposal of empty packs
Throughput
Up to 450 tests/hr maximum (one-step assays)
Installation Requirements
Dimensions and weight
Analyzer:
Weight: 1,842 lbs (836 kg)
Length: 79 in (200 cm)
Height: 63 in (159 cm)
Depth: 41 in (104 cm)
Clearance Requirements:
Clearance around the analyzer for ventilation
Rear: Minimum of 20 in (50 cm)
Clearance around the analyzer for service:
Rear: Minimum of 20 in (50 cm)
Left: 0 in (0 cm)
Right: Minimum of 15 in (38.1 cm)
Top: Minimum of 22 in (56 cm)
Front: Minimum of 50 in (127 cm)
Waste requirements
Solid waste (Tips, RVs, Reagent Packs) collected in waste container. (No manual removal required for operation)
Tip trays, substrate bottles and caps stored separately for recycling capability purposes
Floor drain only
Drain Location:
Maximum distance 33 ft (10 m) from the system
Maximum height 4 ft (1.5 m) from the floor
Power and environmental requirements
Power Supply: 200-240 VAC at 1600 VA, at either 50 Hz or 60 Hz, single phase
Frequency: 47–63 Hz
Power: No greater than 2,700 W
Computer:
CPU Intel Core i7-6700 processor
Memory: 2 x 16GB DDR4-2133
Storage: 2 x 240GB SSD
Operating system: Windows 10
External communication types
RS232 serial interface:
Ethernet: LAN using TCP/IP
Monitor:
Touchscreen display: 21.5 in diagonal TFT LCD with projected capacitive touch
Interface:
Pixels: 1920 x 1080 RGB
Heat output: 4,231 BTU/hr
Ambient operating environment
Ambient temperature: 64°F to 86°F (18°C to 30°C)
Humidity: 20% to 80%
Altitude: 7,500 ft (2.286 km)
Noise Level: <60 dB at 1000Hz
Water: No water requirement
Drain Volume: >1.85 gal/hr (>7 L/hr)
