Description

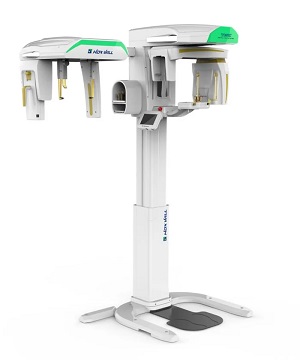

Two in One System
• The system that integrated two X-ray device into one equipment.
• Panorama, Cephalo
Separable Cephalo system
• The Cephalo imaging system can be separated according to customer needs.
Optional detector
• Detectors are available for purchase depending on customer needs.
• Exclusive Panorama
• Panorama/ Cephalo combo
A variety of capturing function
• Capturing Panorama supports Pano, TMJ and SINUS Mode.
• Capturing Cephalo supports Lateral, PA, SMV, and Carpus mode.
Image Processing Algorithm(Image quality enhancement)
• Panorama and Cephalo provide quality images by optimized image processing
algorithm and imaging filter option for taste of customer.
LCD module with Touch panel
• LCD module with touch panel enables users to manipulate the equipment
quickly and easily by providing intuitive letters and graphic-user Interface.
Auxiliary laser beam
• Three laser(horizontal, vertical and canine) beams assist to make the
device align with patients’ teeth.
Software(User Friendly Software)
• The latest imaging tools and new features can be updated
with providing on-site training service.
DICOM 3.0 compatibility(DICOM 3.0 compatible)
• All the date, can be transferred and searched, interface
with DICOM-compatible PACS.
Parallel moving Cephalo System
• Reduce Cephalometric imaging distortion
TECHNICAL DATA
• X-ray: Beam Cone beam
• kV Range: 50 kV ~ 90 kV
• mA Range: 4 mA ~ 10 mA
• Gray Scale: 16 bits / 14 bits
• Detector Type: CMOS / TDI CCD
• Focal spot: 0.5mm
• Scan Time: Panorama : 14.2 s (Normal)/ 7 s (Fast) | Cephalo : 8.2 s (Normal) / 4.2 s (Fast)
• Patient position: Standing
Dimension (W×D×H): with Cephalo : 1953 mm × 1222 mm × 2309 mm
Dimension (W×D×H): without Cephalo : 980 mm × 1222 mm × 2309 mm
System Weight with Cephalo 160 kg
System Weight: without Cephalo 130 kg
