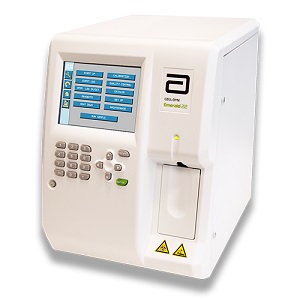

CELL-DYN Emerald 22 Hematology Analyzer

Description

Compact design
The CELL-DYN Emerald 22 is one of the smallest 5-part differential analyzers on the market and helps laboratories like yours conserve valuable workspace.

Small and powerful
Specifically designed with space in mind doesn’t mean less functionality — it means more. The CELL-DYN Emerald 22 includes a numeric keypad entry, reagent tray, and integrated color touchscreen monitor.

Easy and automated
You and your staff will have fewer errors and better compliance using barcoded reagents as well as reduced hands-on time with touch-free scheduled daily maintenance, startup and shutdown.

Technology for all employees
CELL-DYN-Emerald 22’s flexible interface is user friendly, offering easy training of software functions using the color touch screen and numeric keypad to bring employees up to speed quickly

Smart technology means less time needed
With only three reagents and automated daily maintenance, you’ll get more operator time that will simplify inventory management and help reduce manual tasks.

System Specifications
Specifications DescriptionS
Technology & Methods
Electronic impedance
Absorption spectrophotometry
Electronic valves • Cyanide-free lyse reagent
LCD color touch screen
RS232 and TCP/IP LIS interface
USB ports
Throughput Up to 57 samples per hour
Sample Size ~9.8 μL
Specimen Data Management
Search by date or sequence number
Flagging for patient limit sets
Flagging for panic values
1,500 records with histograms on internal memory
Up to 300,000 records on external USB thumb drive
Customizable patient limits
Customizable report units (US, SI, SI MOD)
Barcode reader (reads code 128, code 39, interleaved 2 of 5, and others listed in the Operator’s Manual)
Quality Control
6 control files
100 runs per file
Levey-Jennings graphs
Upload/download control information
eQC online peer review program
Demographics
Sequence number
Alphanumeric specimen ID
Alphanumeric patient ID
Date & time analyzed
Patient name
CBC with 3-part differential
Flagging and Alerts
Dispersional Data Alert
Operator-defined patient limits for high and panic values
System-defined limits for reportable range and analytical measurement range
Suspect parameter flags caused by interfering substances or sample abnormalities
Suspect parameter flags generated when WBC data indicates possible presence of an abnormal population
Standards & Safety Compliance
IEC 61010-1
CAN/CSA-C22.2 No. 61010-1
IEC 61010-1
IEC-61010-2-101
IEC 61326-1
IEC 61326-2-6
CE Mark
Peripheral Devices
Inkjet or laser printer
USB Thumb Drive
Handheld barcode scanner
Physical Dimensions
Height – 13.8 inches (35 cm)
Width – 9.8 inches (25 cm)
Depth – 13.8 inches (35 cm)
Weight – 19.8 lbs. (9 kg) (without on-board reagents)
