Description
Product Profile
IKEDA’s endoscope camera system is a compact system with a built-in LED light source. It was specifically developed to meet the office and ambulatory diagnosis requirements balancing the patients’ and the providers’needs.Its products are currently used in clinical departments such as otolaryngology, urology, gynecology, orthopedics, general surgery, neurosurgery, and plastic surgery.

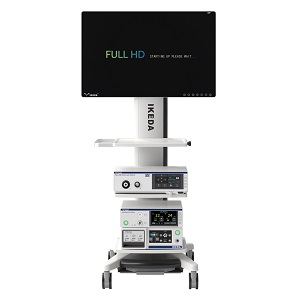

Full HD Endoscope Camera system
Camera Control Unit-YKD-9102
Camera Head -IPX8 waterproof grade
4K Monitor
Medical trolley -YKD-2101
YKD-9102 Medical Endoscope Camera
FULL HD Image Sensor
FHD camera head and LED cold light source integrated
Built-in USB FULL HD image storage, Integrated photo/video recording system
FHD Camera
FHD IPX-8 waterproof grade
User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
4K Monitor
3840×2160 ultra-high-definition image output,showing richer textures and more accurate tissue identification
3840×2160 pixel image output, showing richer texture, more accurate tissue identification
Wider color gamut, truly restore the color of organs and tissues, and locate blood vessels, lymph nodes and nerves faster
CE/ROHS/FCC certified
Product Detail
Camera head
· Full HD imaging (1920 x 1080)
· IPX8 waterproof
· Full HD optical coupler C-mount standard
Voltage range (current consumption)
·100-240 V(50 VA)
Frequency
· 50-60 Hz
Device protection
· 2x T3,15 A
Video system
· Image resolution: FHD 1920 x 1080
· Horizontal resolution: ≥1200 TVL
· SNR: 60DB,Tolerance 20%
· Scanning system: Progressive Scanning
· White balance automatically
Light source · Built-in 80W LED cold light source
Recording (Options)
· Image format: JPG 1920 x 1080
· Video format: Full HD 1920 x 1080;
Mpeg-4 (H.264 Codec); Image rate 60fps
· Connection: USB
Connections
Video out terminal:
· 1x DVI
· 1x HDMI
· 1x CVBS
Protection class (acc.to IEC 60601-1)
·I
Safety Class
BF
Standard
IEC 60601-1-2
Features
· White balance
· Freeze function
· Zoom in/Zoom out
· Touch Buttons
· USB storage
· Photo capture/Video recording
Language
· Chinese/English/Japanese/Korean/Spanish/German/Russian
